WP220/W Universal wall panel - Bluetooth receiver input - 80 x 80 mm

WP220/W Universal wall panel - Bluetooth receiver input - 80 x 80 mm

  • Elegant design to blend in with any environment
  • Compatible with EU (80x80 mm) installation materials
  • Signal transmission over twisted pair (CAT5E) or better cabling
  • Signal transmission insensitive for interference and noise
  • SKU:WP220/W
  • GTIN/EAN:
  • MPN:WP220/W

You need to login to view the price.

Add To Favorite
View full details

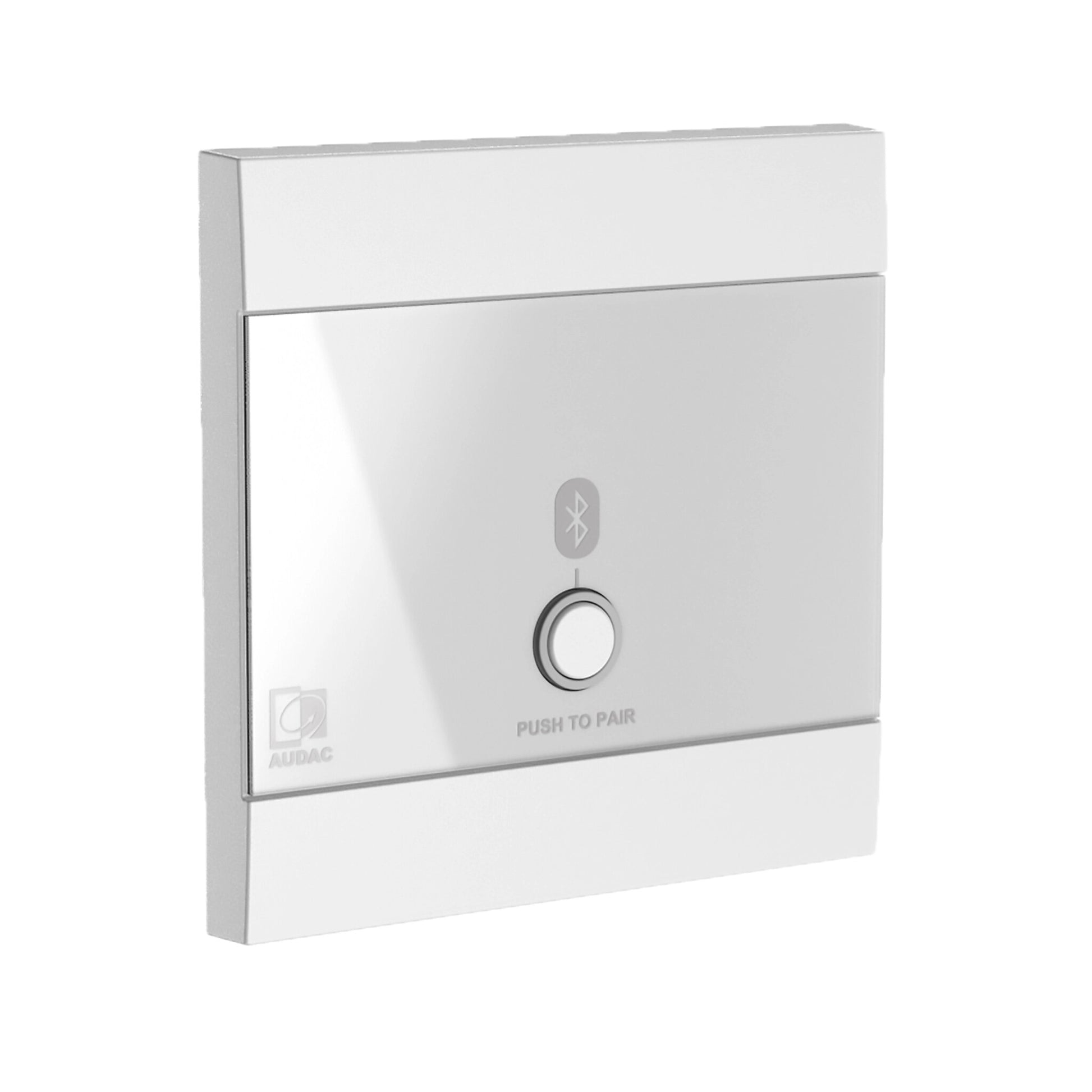

The WP220 is a remote universal wall panel with Bluetooth receiver input that can be used in combination with various AUDAC hardware (ARES5A, MTX series, AMP523 and more). It was never easier connecting your Bluetooth enabled device with your audio installation using this wall plate.  It will enable you to transfer high-quality audio over long distances between the wall panel and the loudspeaker, by just using inexpensive twisted-pair CAT5e or better cabling.

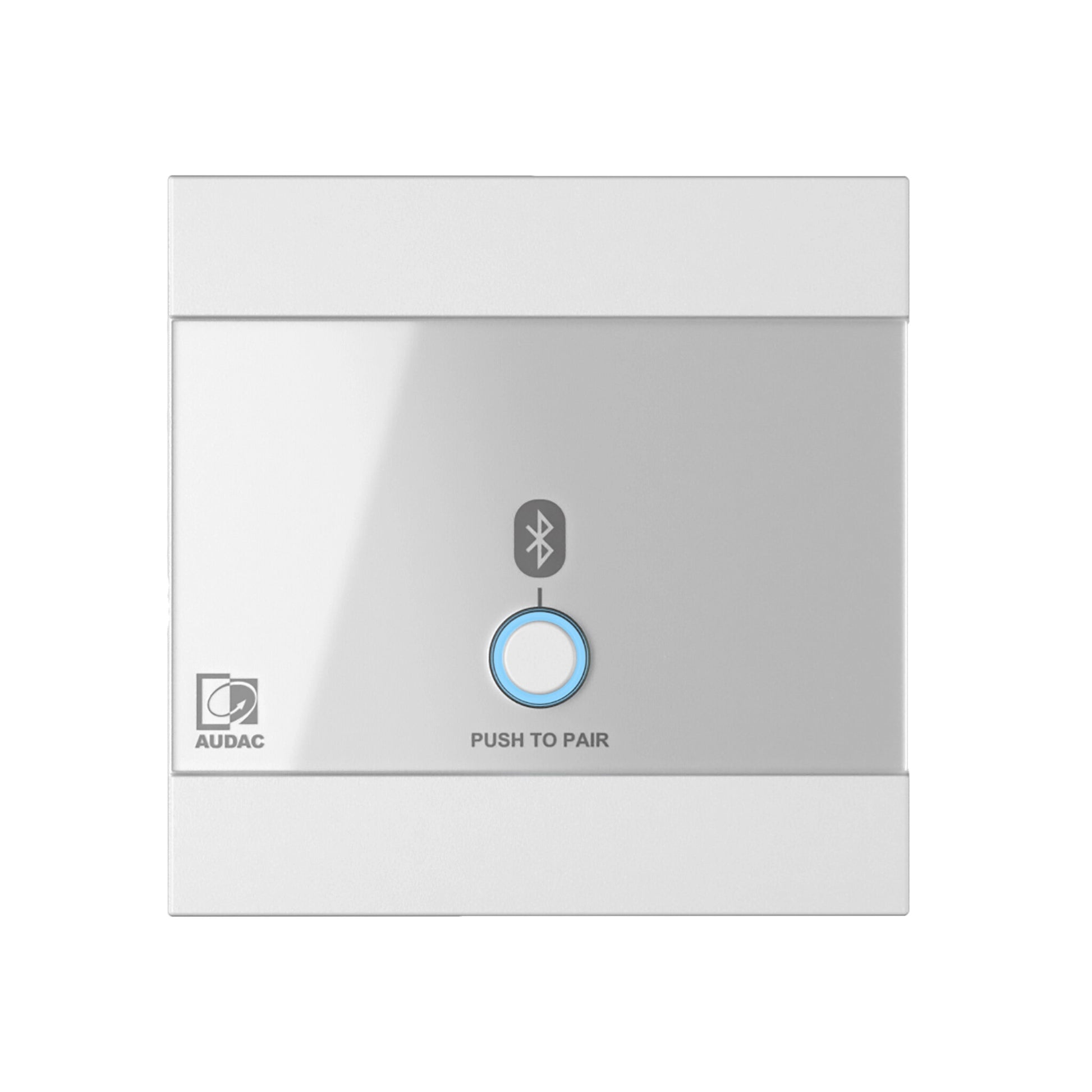

On the front side of the wall panel, you'll find a Bluetooth pair button with a handy LED indicator to check if its in pairing mode or already connected to a device. Bluetooth pair name can be customized as desired. The Bluetooth receiver works with iPhones, iPads, iOS & Android smartphones, tablets, PC, Laptops, Desktops, etc...

The WP220 is available in 2 colours (White - RAL9003 & Black - RAL9005) and is compatible with most standard EU (80x80 mm) style in-wall boxes for solid and hollow walls. With the Elegant ABS front panel with glass, it will blend into any environment.

System specifications
Inputs
Bluetooth receiver (Version 5.0)
Control
Bluetooth pairing button with LED
Indicators
1 LED (RGB) - Bluetooth status
Product Features
Construction
ABS
Front finish
Elegant ABS front panel with glass
Colours
White (RAL9003)
Dimensions
80 x 80 mm (W x H) (Remote wall panel)
Installation standard
Compatible with EU installation materials
