WP225/B Universal wall panel - Microphone, line & Bluetooth receiver - 80 x 80 mm

WP225/B Universal wall panel - Microphone, line & Bluetooth receiver - 80 x 80 mm

  • Elegant design to blend in with any environment
  • Compatible with EU (80x80 mm) installation materials
  • Signal transmission over twisted pair (CAT5E) or better cabling
  • Signal transmission insensitive for interference and noise
  • SKU:WP225/B
  • MPN:WP225/B

You need to login to view the price.

Add To Favorite
View full details

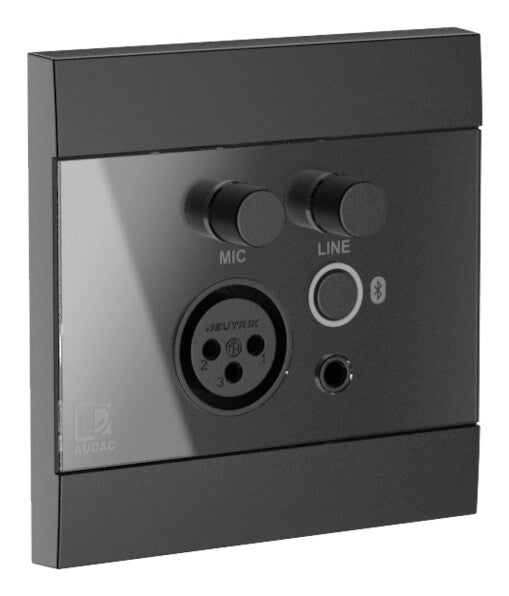

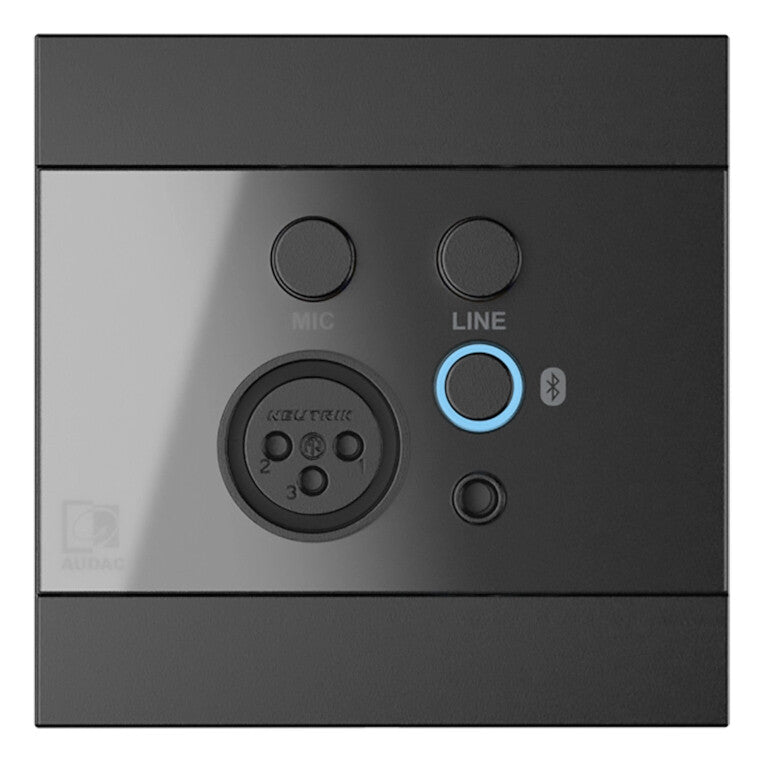

The WP225 is a remote wall mixer that can be used in combination with various AUDAC hardware (ARES5A, MTX series, AMP523 and more). It converts the signal coming from a stereo line-level audio source (such as a tuner, mobile devices, ... ) or balanced microphone to the level corresponding to the differential signal input making it possible to transfer high-quality audio over long distances between the wall panel and the loudspeaker, by just using inexpensive twisted-pair CAT5e or better cabling. On the front side of the wall panel, there is a 3.5 mm jack stereo line input connection available together with a balanced XLR microphone input, both provided with their own knob which allows the signals to be mixed together.

It also features a Bluetooth receiver and pair button with a handy LED indicator to check if its in pairing mode or already connected to a device. Bluetooth pair name can be customized as desired. The Bluetooth receiver works with iPhones, iPads, iOS & Android smartphones, tablets, PC, Laptops, Desktops, etc...

The WP225 is available in 2 colours (White - RAL9003 & Black - RAL9005) and is compatible with most standard EU (80x80 mm) style in-wall boxes for solid and hollow walls. With the Elegant ABS front panel with glass, it will blend into any environment.

System specifications
3.5 mm jack stereo line, XLR microphone, Mic & Line inputs on rear for permanent connections, Bluetooth receiver (Version 5.0)

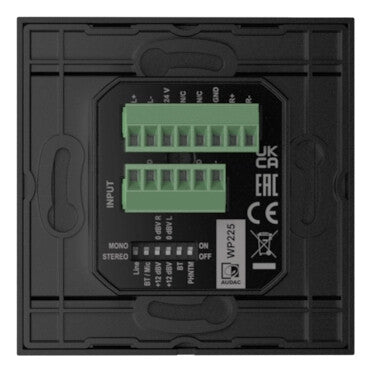

Individual input level control for Mic & Line, Bluetooth pairing button with LED, Phantom power (DIP switch on rear), Low-cut (Mic) enable / disable (DIP switch on rear), Output level +12 dBV enable / disable (DIP switch on rear), Bluetooth enable / disable (DIP switch on rear), Mono / Stereo (DIP switch on rear)
1 LED (RGB) - Bluetooth status
Product Features
Front finish
Elegant ABS front panel with glass
Black (RAL9005)
80 x 80 mm (W x H) (Remote wall panel)
Installation standard
Compatible with EU installation materials
