Nexmosphere X-Dot X, Pick-up & Security, 180cm coiled cable, white

Nexmosphere X-Dot X, Pick-up & Security, 180cm coiled cable, white

X-Dot X, Pick-up & Security, 180cm coiled cable, white

  • Unique cable connection (bottom feed or side feed) enables invisible cable installation
  • Securely mounts on any flat surface, horizontal, vertical or angled
  • Light & flexible cable allows customers to experience the true weight and feel of the merchandise
  • Easy removable non-marking double-sided tape
  • Status LED for visual feedback
  • SKU:44619
  • GTIN/EAN:8720064446195
  • MPN:XDW-X36C

You need to login to view the price.

Add To Favorite
View full details

Nexmosphere X-Dot X, Pick-up & Security, 180cm coiled cable, white. Country of origin: Netherlands

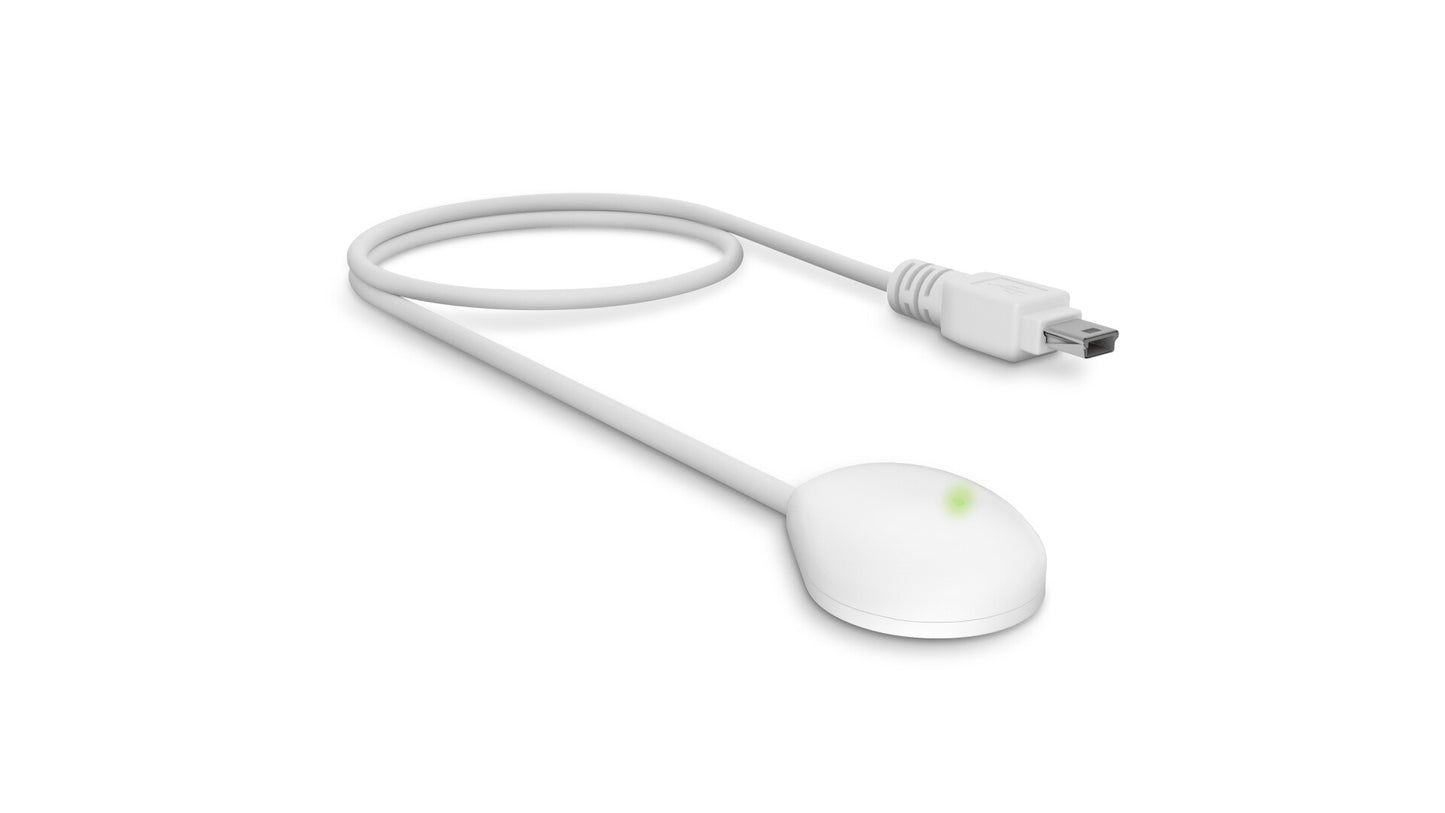

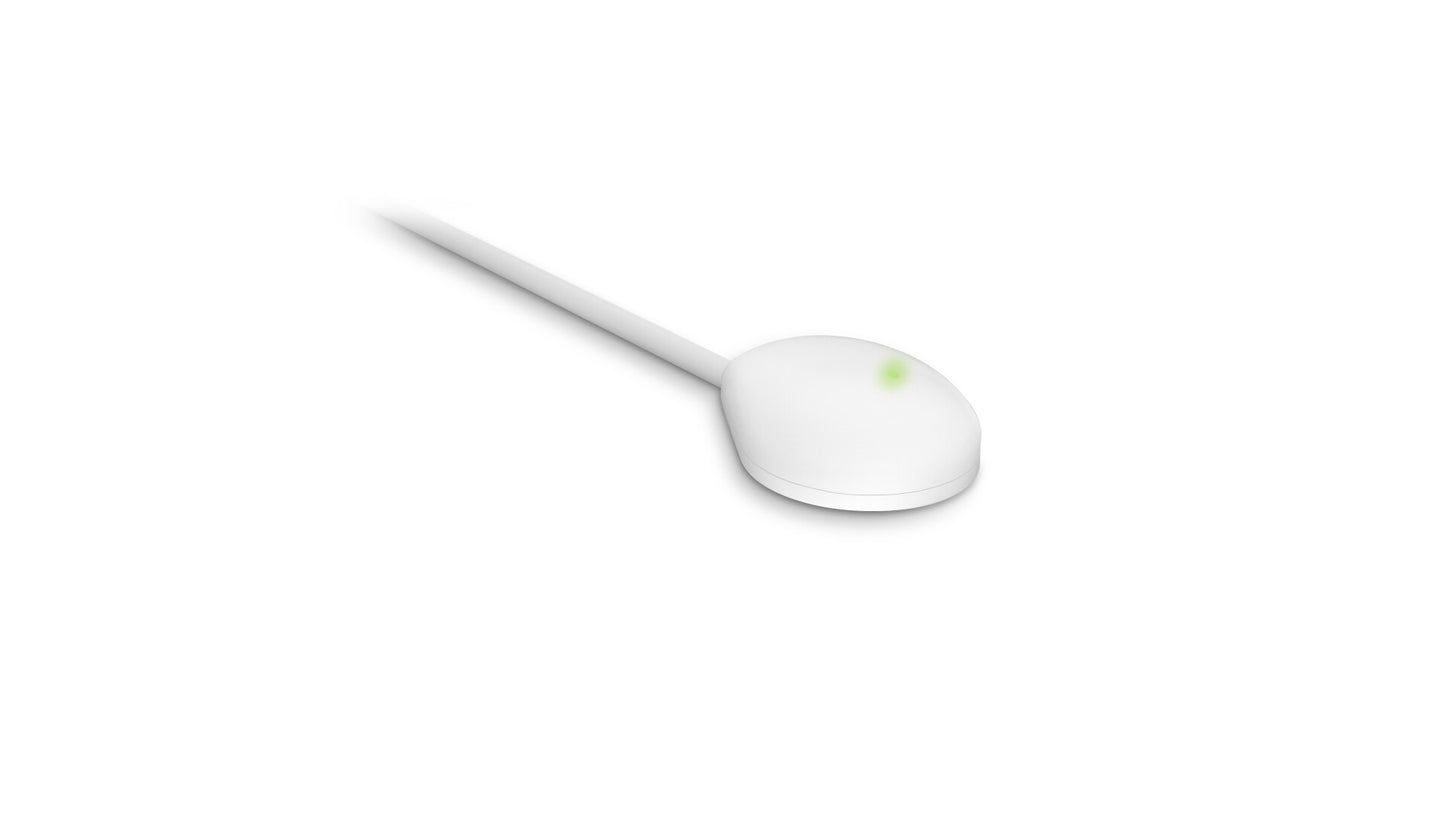

The X-Dot X is a wired pick-up sensor that can also be used as an active security device. The sensor is mounted onto the merchandise using double-sided tape. When a product is lifted or placed back, the X-Dot sends a trigger to the connected Xperience controller. The security function sends triggers whenever merchandising is removed, the wire is cut or pulled out.

The sensor registers a pick-up of the merchandise as well as when it is placed back on the shelf (place-down). Both events will be sent as triggers from the Xperience controller to the connected media player, for example, to start a video or illuminate a string of LEDs.

The alarm sensor triggers if the merchandise is removed; cables are cut or the sensor is removed from the Xperience controller. The micro-optical sensor has no moving parts eliminating false alarm caused by most commonly used micro-switches.

The X-Dot X can easily be connected to any of the Nexmosphere Xperience controllers using the X-talk interface. All settings of the XD sensor are programmable on the controller, enabling a seamless integration in your application.

Technical details
Sustainability compliance
Dimensions (WxDxH)
290 x 220 x 100 mm
Operating temperature (T-T)
10 - 40 °C
Storage temperature (T-T)
-20 - 50 °C
34.5 g
Sustainability certificates
Logistics data
Country of origin
Customs product code (TARIC)
