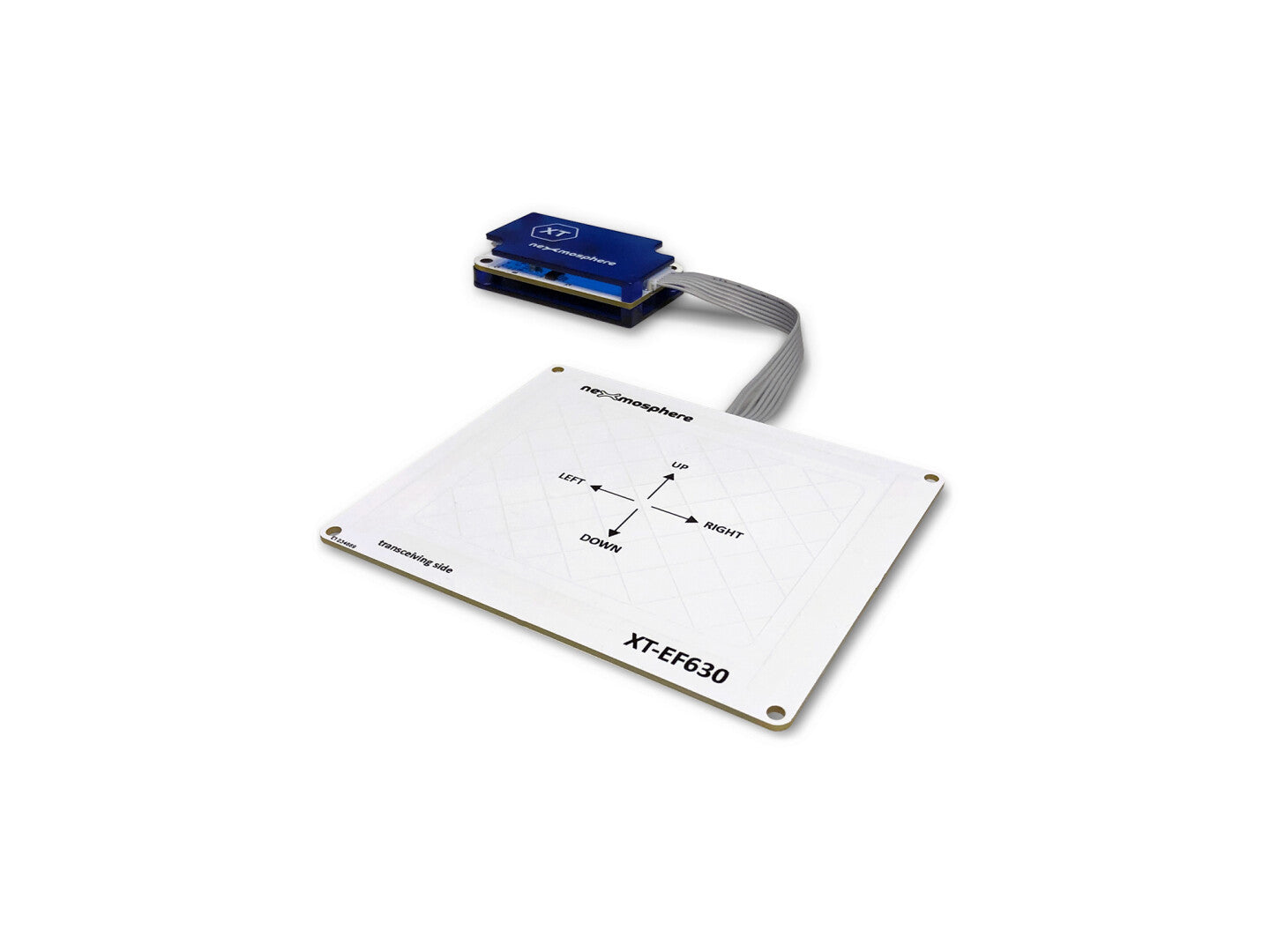

Nexmosphere X-Touch, Air gesture sensor, 110x90mm electrode

Nexmosphere X-Touch, Air gesture sensor, 110x90mm electrode

X-Touch, Air gesture sensor, 110x90mm electrode

  • Very thin form factor for easy integration
  • Capacitive sensing technology allows for placement behind or below any non-metal surface
  • Various sizes available to match the design of your applications
  • Auto-calibration and auto-start for highly reliable applications (24/7)
  • Status LED indicating trigger detection
  • SKU:44761
  • GTIN/EAN:8720064447611
  • MPN:XT-EF630

You need to login to view the price.

Add To Favorite
View full details

Nexmosphere X-Touch, Air gesture sensor, 110x90mm electrode. Country of origin: Netherlands

The Nexmosphere XT EF-Series offers sensors in various sizes which are able to detect touchless input from the user. The AirButton feature detects whenever a person’s hand either enters or leaves the sensor’s detection field, sending both events as a status message to your Digital Signage player, while also being able to register and respond to physical Touch input. The AirGesture feature registers and communicates left, right, up, and -down air swipes. All the inputs from these sensors can be used to trigger events on your Digital Signage installations, for example toggling through menu options or offering product, or -service information without having to touch the screen, the merchandise, or any physical buttons.

The XT-EF630 features AirButton, AirGesture and AirWheel detection and has a detection area of 90 x 70mm.

AirButton, AirGesture and AirWheel detection
AirButton detects when a person’s hand is placed above the sensor (AirButton) or when a hand touches the sensor’s surface or its overlaying panel (Touch).
AirGesture detects left, right, up, and -down air swipes, faciliting touchless navigation for digital content.
AirWheel detects left and right circular movements, enabling touchless control of parameters such as audio volume.
Multiple sensitivity settings are available to fine-tune the detection range of the sensor to your application.

The XT EF-Series sensors can easily be connected to any of the Nexmosphere Xperience controllers using the X-talk interface. All settings of the EF sensor are programmable on the Controller, enabling a seamless integration in your application.

AirButton detection for touchless user input
AirGesture detection for touchless navigation
AirWheel detection for touchless parameter control
Adjustable sensitivity

Technical details
Warranty period
1 year(s)
Sustainability compliance
Rack mounting
Dimensions (WxDxH)
110 x 90 x 5.6 mm
Operating temperature (T-T)
10 - 40 °C
Storage temperature (T-T)
-20 - 50 °C
61.5 g
Sustainability certificates
Built-in processor
Logistics data
Country of origin
Customs product code (TARIC)
