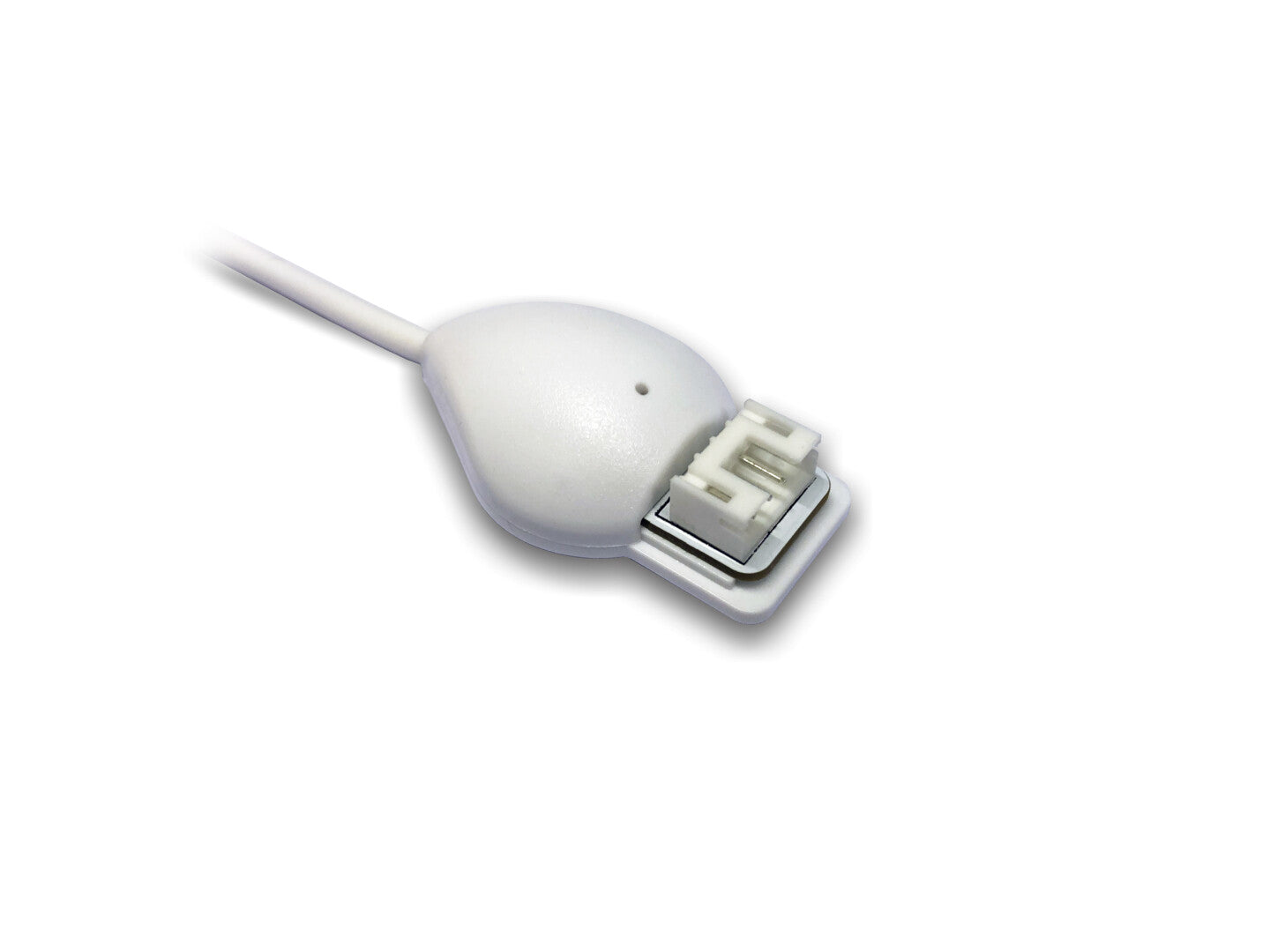

Nexmosphere X-Wave controller wave LED, Linear Wave, 180cm cable

Nexmosphere X-Wave controller wave LED, Linear Wave, 180cm cable

X-Wave interface, Linear wave control, 180cm cable

  • X-Wave interface for Pixel LED strips
  • Controls Pixel LED strip from 1 to 120 LEDs
  • Compatible with any Nexmosphere Pixel LED strip
  • Unique cable connection (bottom feed or side feed) enables invisible cable installation
  • Securely mounts on any flat surface, horizontal, vertical or angled
  • Suitable for edge lighting of acrylic materials
  • Easy way to get multiple color LED lights integrated in your design without the cable connection issues of installing multiple LED strips or RGB LED strips
  • In case the connected Pixel LED strip requires more than 450mA, additional power supply wiring can be added onto the Pixel LED strip
  • SKU:41583
  • GTIN/EAN:8720064415832
  • MPN:XW-DL6

You need to login to view the price.

Add To Favorite
View full details

Nexmosphere X-Wave controller wave LED, Linear Wave, 180cm cable. Housing colour: White, Ambient temperature range: 10 - 40 °C. Width: 22 mm, Depth: 37.3 mm, Height: 10 mm. Country of origin: Netherlands

The Nexmosphere X-Wave range shines a new light on animated lighting. The X-Wave LED technology allows the user to select one of the numerous pre-programmed patterns and modify its colors to fit the exact application, whether it is a gentle soft glow or a complex running flashing light pattern. The X-wave products come in different sizes to suit the needs for different in-practice applications.

The X-Wave DL is an interface for controlling flexible Pixel LED strips with the X-Wave protocol.

X-talk
The X-Wave interface can easily be connected to any of the Nexmosphere Xperience controllers using the X-talk interface. All settings of the X-Wave interface are programmable on the Xperience controller, enabling a seamless integration in your application.

Wave LED
The X-Wave LED technology shines a new light on animated lighting and allows user selection of one of the numerous pre-programmed patterns and modifying its colors to fit the exact application. Whether it is a gentle soft glow or a complex flashing running light pattern, this feature will draw attention or offer visual guidance the way you want it to. The onboard LED drivers enable a smooth dimming from 100–0%.

Features
Ambient temperature range
10 - 40 °C
Housing colour
White
Weight & dimensions
Weight
25.5 g
Height
10 mm
Depth
37.3 mm
Width
22 mm
Technical details
Sustainability certificates
CE, RoHS
Logistics data
Country of origin
Netherlands
Customs product code (TARIC)
8536501990
