Chief XSD1U-EU

Chief XSD1U-EU

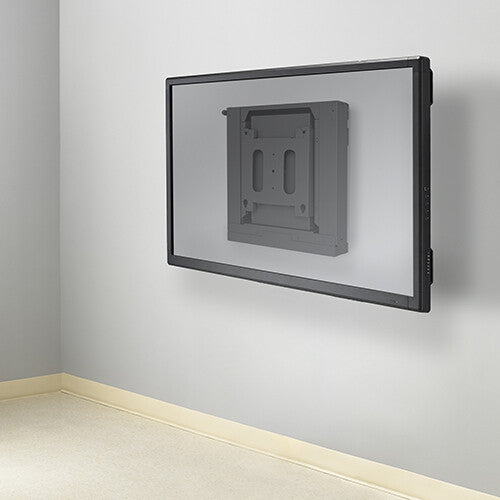

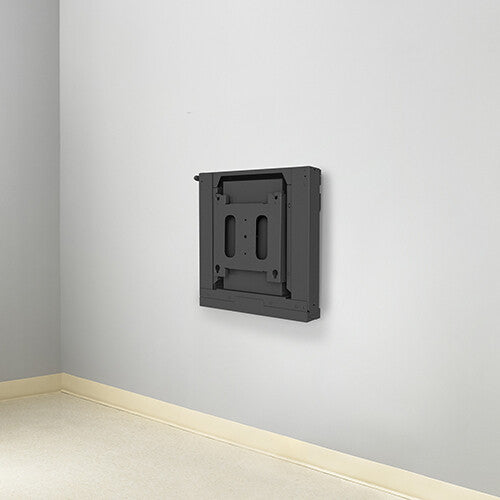

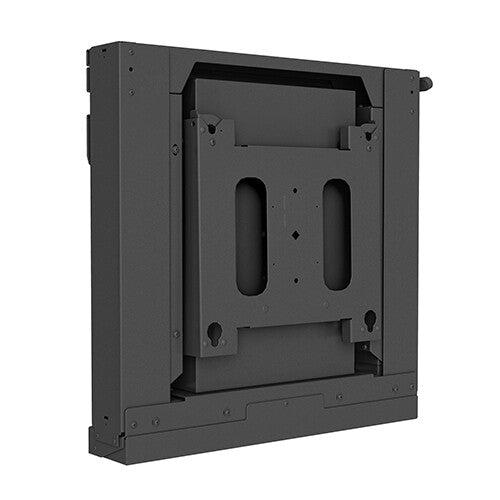

XL Fusion Electric Height Adjust Wall Mount, European Union

  • Accommodates typical large displays between 50-80" up to 310 lbs (140.6 kg) with VESA® 200 x 200 – 860 x 510 mm
  • Anti-collision sensor immediately halts, then reverses motion of display upon encountering an obstruction to avoid pinching fingers or damaging technology
  • ControlZone for post-installation fine-tuning of height and leveling
  • Ships fully assembled
  • Integrated cable management and strain relief protects traveling cable from disconnecting
  • Control pad included. Optional accessories sold separately; Remote Control Kit PACREM (includes remote and Bluetooth™ dongle) or choose Bluetooth Dongle PACBLU to access phone app
  • A full line of accessories can be installed with mount, including shelves, padlock and speaker adapters
  • SKU:841872173351
  • GTIN/EAN:841872173351
  • MPN:XSD1U-EU

You need to login to view the price.

View full details

Chief XSD1U-EU. Maximum weight capacity: 140.6 kg, Minimum screen size: 127 cm (50"), Maximum screen size: 2.03 m (80"), Minimum VESA mount: 200 x 200 mm, Maximum VESA mount: 860 x 510 mm. Height adjustment range: 0 - 660 mm. Product colour: Black

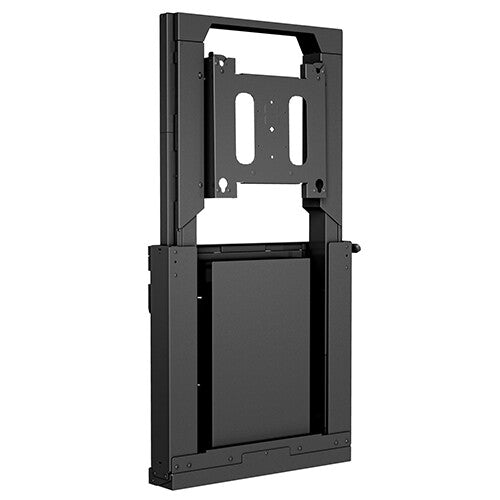

Ideal for interactive applications, this solution comes with electric height adjust capability to create better accessibility to technology in the boardroom and the classroom. The height adjustable solution provides 26” (660 mm) of vertical lift.

Easy to install. Easy to adjust.

Mounting
Maximum weight capacity
140.6 kg
Minimum screen size
127 cm (50")
Maximum screen size
2.03 m (80")
Mounting type
Wall
Minimum VESA mount
200 x 200 mm
Maximum VESA mount
860 x 510 mm
Panel mounting interface
200 x 200,860 x 510 mm
Number of displays supported
1
Ergonomics
Height adjustment
Yes
Height adjustment range
0 - 660 mm
Design
Product colour
Black
Certification
UL Listed, TÜV
Power
Power consumption (typical)
450 W
AC input voltage
100 - 240 V
AC input frequency
50 / 60 Hz
Weight & dimensions
Width
679.6 mm
Depth (max)
17.5 cm
Height
684.3 mm
Logistics data
Harmonized System (HS) code
85299097
