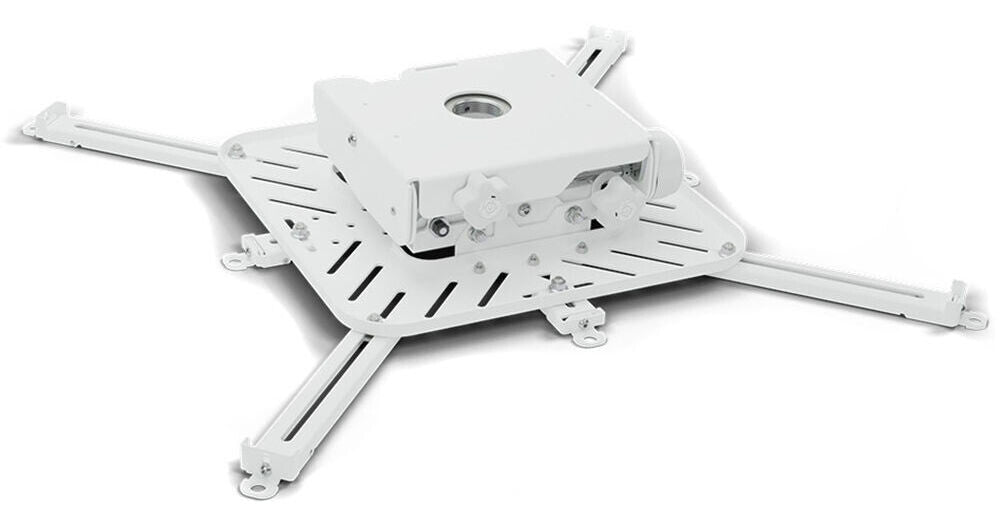

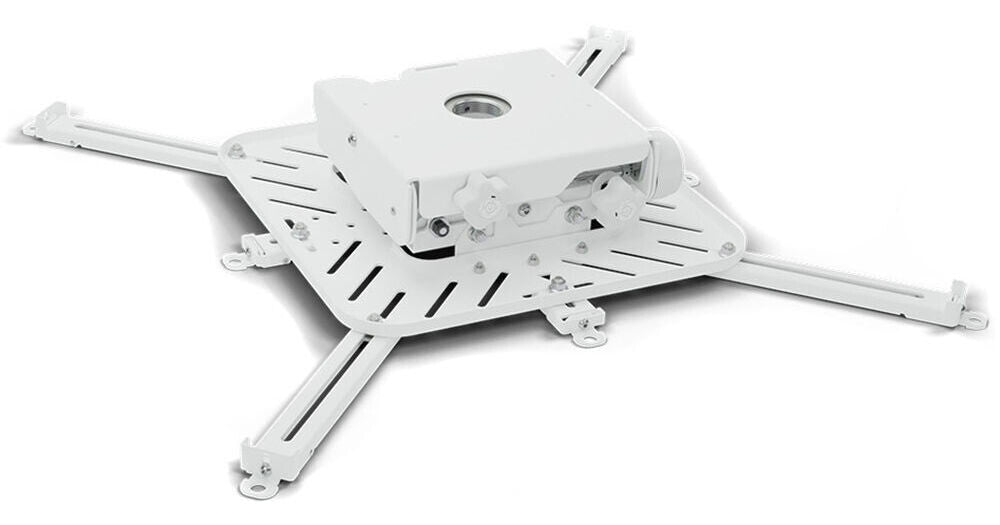

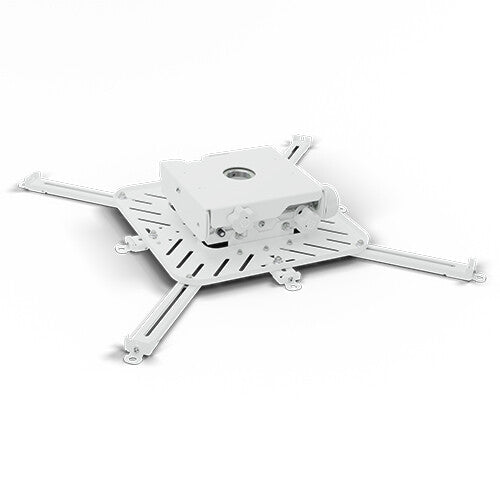

Chief VCTUW — XL universal tool-free ceiling projector mount, white
The Chief VCTUW is an extra-large universal ceiling projector mount engineered for fast, precise installation of heavy laser projectors in demanding venues such as auditoriums, houses of worship, and large conference rooms. Rated for projectors weighing between 22,7 and 68 kg, it is 30% slimmer and 25% lighter than its predecessor, the VCM, keeping ceilings clean and professional. The included HCUW Universal Interface accommodates the bolt patterns found on most large-venue laser projectors, with both short and long attachment legs to suit different projector footprints. Finished in white to coordinate with light-coloured projectors and ceilings, the VCTUW is TÜV-certified and UL-listed.
Tool-Free MicroZone+ Precision Alignment
The VCTUW's MicroZone+ system provides fully tool-free micro-adjustment across three axes: ±5° roll, ±20° pitch, and ±10° yaw, plus 360° macro yaw rotation. The pitch mechanism runs a 100:1 gear ratio, meaning very small turns of the knob translate to precise, repeatable movements — far finer than what a wrench-based approach can deliver. It can be driven by hand using the built-in knob, or with an optional 1/2" (1,3 cm) socket for even more controlled torque. Once dialled in, PrecisionSet™ technology locks the pitch setting and lockout nuts secure roll and yaw. The practical result: an installer can get a perfectly framed image quickly and reliably, even on a high ceiling, and the image will stay exactly where it was set even under vibration or HVAC movement.
Extra-Large Capacity for Heavy Laser Projectors
With a 68 kg weight capacity, the VCTUW is specifically dimensioned for the class of large-venue laser projectors that have become standard in auditoriums, houses of worship, and large corporate presentation rooms. These projectors are substantially heavier than standard models and place significant structural demands on the mount. The XL footprint with adjustable attachment legs — short legs for compact bolt patterns, long legs for wider patterns — ensures the load is distributed correctly and the mount engages the projector chassis securely. Custom interfaces are also available from Chief for projectors with non-standard patterns. This makes the VCTUW a reliable one-mount solution across a broad range of professional projector brands without requiring bespoke hardware for each model.
Low-Profile Design Reduces Ceiling Impact
At just 12,3 cm deep (without legs), the VCTUW is 30% slimmer than the predecessor VCM series and 25% lighter. In large rooms where the projector must be positioned at considerable height, every centimetre of hang depth matters: a shallower mount means shorter pipe drops, a cleaner sightline from the audience, and a less visually intrusive installation. The white finish is matched across knobs and hardware so the entire assembly coordinates with the projector and ceiling rather than drawing attention to the mount. This attention to aesthetics is particularly relevant in premium presentation spaces, hotel ballrooms, and houses of worship where the interior finish is part of the client's brief.
Safety-Certified for Commercial Installations
The VCTUW carries TÜV certification and is UL Listed (Plenum rating), meeting the safety standards required for commercial and institutional ceiling installations. The Plenum rating specifically confirms the materials comply with fire and smoke regulations for use in HVAC plenum air spaces — a requirement in many commercial building codes that can affect permit approval and inspection sign-off. For integrators working in public venues, schools, or corporate campuses, specifying a UL-listed mount removes ambiguity in compliance documentation and reduces liability risk. The 1-1/2" NPT/NPSM threaded receiver is the industry-standard pipe thread for AV suspension, ensuring compatibility with Chief and third-party speed-connect columns, extension adapters, and ceiling plates.
