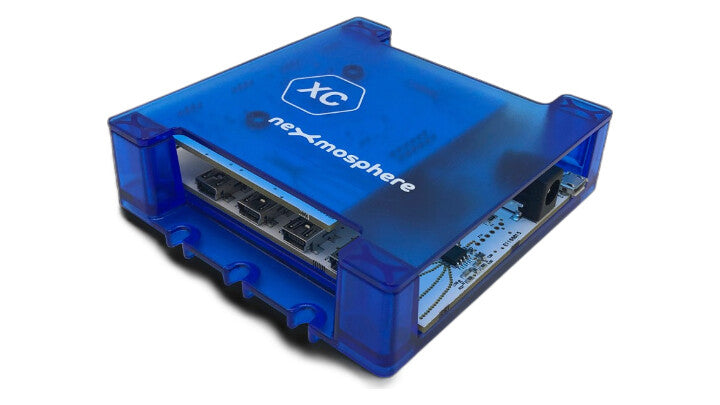

Nexmosphere Xperience controller, 2x RGBW LED output, 4x X-talk, USB

Nexmosphere Xperience controller, 2x RGBW LED output, 4x X-talk, USB

Xperience controller, 2x RGBW LED output, 4x X-talk, USB

  • X-talk interface for easy sensor connection
  • Dimmable RGBW LED output
  • X-Wave interface for Pixel LED strips
  • Auto start-up and configuration for highly reliable applications (24/7 operability)
  • Compact form factor for easy installation in or behind displays
  • Control multiple Pixel LED strips from one single controller
  • Compatible with all Nexmosphere Elements
  • SKU:45029
  • GTIN/EAN:8720064450291
  • MPN:XC-820
Add To Favorite

You need to login to view the price.

View full details

The Nexmosphere XC range offers Xperience Controllers in a compact form factor while offering various onboard functionalities. Choose the right controller series based on the functionality needed, whether this is controlling multiple RGBW LED strips, pixel LED strips or (optical) audio switching. Combine this with Elements connected onto the X-talk channels to build your own unique experience.

The 800 series is equipped with fully dimmable RGBW LED outputs which allow connecting 12/24V LED strips. Transition smoothly between different colors and create just the right atmosphere with subtle lighting use in tailored RGBW LED colors.

X-talk interface
Connect a wide range of sensors, buttons, LEDs, or any other of the Nexmosphere Elements to create your unique shopper experience. Due to auto-configuration, no additional setup is required for seamless operation.
• Plug and smile interface
• Compatible with any of the Nexmosphere Elements
• Providing power to the connected Elements for easy system wiring

Dimmable RGBW LED output
The RGBW LED output allows connection and control of any standard 12-24V RGB(W) LED strip to illuminate large surfaces. All outputs are fully dimmable and allow smooth fading between the different intensities and colors.
• 12/24 VDC, 3A max per channel (comb. total output 4A max)
• Individually dimmable LED output (PWM/4096steps)
• JST connectors for easy “click-in”

Technical details
Compliance certificates
CE, RoHS
Warranty period
1 year(s)
Sustainability compliance
Yes
Data transfer rate
8 Gbit/s
Supported protocols
ASCII
Dimensions (WxDxH)
91 x 86 x 26 mm
Operating temperature (T-T)
10 - 40 °C
Storage temperature (T-T)
-20 - 50 °C
Weight
96 g
Processor
Built-in processor
No
Logistics data
Country of origin
Netherlands
Customs product code (TARIC)
8543709099
