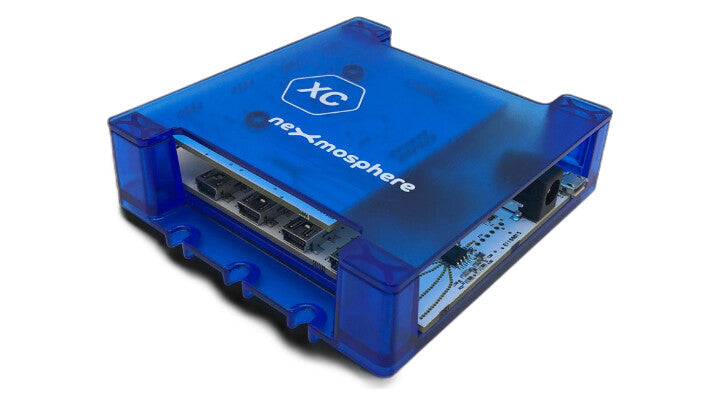

Nexmosphere Xperience controller, 6x LightMark interface, 4x X-talk, USB

Nexmosphere Xperience controller, 6x LightMark interface, 4x X-talk, USB

Xperience controller, 6x LightMark interface, 4x X-talk, USB

  • X-talk interface for easy sensor connection
  • LightMark interface for Pixel LED strips
  • Dimmable RGBW LED output
  • Auto start-up and configuration for highly reliable applications (24/7 operability)
  • Compact form factor for easy installation in or behind displays
  • Control multiple Pixel LED strips from one single controller
  • Compatible with all Nexmosphere Elements
  • SKU:45028
  • GTIN/EAN:8720064450284
  • MPN:XC-760

You need to login to view the price.

Add To Favorite
View full details

The Nexmosphere XC range offers Xperience Controllers in a compact form factor while offering various onboard functionalities. Choose the right controller series based on the functionality needed, whether this is controlling multiple RGBW LED strips, pixel LED strips or (optical) audio switching. Combine this with Elements connected onto the X-talk channels to build your own unique experience.

The 700 series are equipped with LightMark interfaces which allow connecting flexible pixel LED strips. LightMark allows for creating wave-like LED animations and virtually dividing a Pixel LED strip into multiple segments and controlling each of those segments separately

X-talk interface
Connect a wide range of sensors, buttons, LEDs, or any other of the Nexmosphere Elements to create your unique shopper experience. Due to auto-configuration, no additional setup is required for seamless operation.
• Plug and smile interface
• Compatible with any of the Nexmosphere Elements
• Providing power to the connected Elements for easy system wiring

The LightMark protocol provides numerous functionalities for animated LED control.
• Preprogrammed patterns with adjustable parameters. These patterns can be modified by changing the parameters to fit the exact application.
• Pattern, speed, color, and brightness control
• Individual segment control
• JST connectors for easy “click-in”

USB Interface
The industry-standard USB interface allows 3rd party product interfacing. The Xperience controller manifests itself as a USB-to-Serial converter and is compatible with all mainstream operating systems and Digital Signage players.

Technical details
Compliance certificates
Sustainability compliance
Data transfer rate
8 Gbit/s
Supported protocols
Dimensions (WxDxH)
91 x 86 x 26 mm
Operating temperature (T-T)
10 - 40 °C
Storage temperature (T-T)
-20 - 50 °C
115 g
Sustainability certificates
Built-in processor
Logistics data
Country of origin
Customs product code (TARIC)
