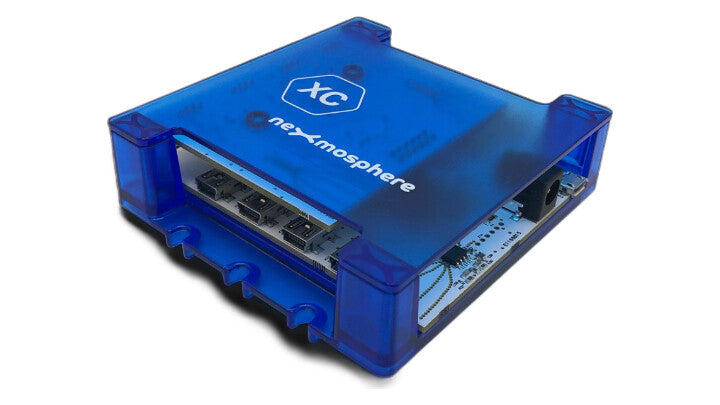

Nexmosphere Xperience controller, Audio in, 4x Audio switch 3.5mm analog, 2x RGBW LED output, 4x X-talk

Nexmosphere Xperience controller, Audio in, 4x Audio switch 3.5mm analog, 2x RGBW LED output, 4x X-talk

Xperience controller, Audio in, 4x Audio switch 3.5mm analog, 2x RGBW LED output, 4x X-talk

  • Auto start-up and configuration for highly reliable applications (24/7 operability)
  • Compact form factor for easy installation in or behind displays
  • Control multiple Pixel LED strips from one single controller
  • Compatible with all Nexmosphere Elements
  • X-talk interface for easy sensor connection
  • Analog audio switches (3.5mm jack plug)
  • Optical audio switches (Mini-Toslink)
  • Dimmable RGBW LED output
  • X-Wave interface for Pixel LED strips
  • SKU:45038
  • GTIN/EAN:8720064450383
  • MPN:XC-948
Add To Favorite

You need to login to view the price.

View full details

The Nexmosphere XC range offers Xperience Controllers in a compact form factor while offering various onboard functionalities. Choose the right controller series based on the functionality needed, whether this is controlling multiple RGBW LED strips, pixel LED strips or (optical) audio switching. Combine this with Elements connected onto the X-talk channels to build your own unique experience.

The 900 series are equipped with audio switches to facilitate easy and seamless switching of an incoming audio stream from one speaker, soundbar or headphone to another. Both analog switches (3.5mm jack plug) and optical switches (Mini-Toslink) are available.

X-talk interface
Connect a wide range of sensors, buttons, LEDs, or any other of the Nexmosphere Elements to create your unique shopper experience. Due to auto-configuration, no additional setup is required for seamless operation.
• Plug and smile interface
• Compatible with any of the Nexmosphere Elements
• Providing power to the connected Elements for easy system wiring

Analog audio switching
Audio switching redirects the incoming external audio signal to any of the connected outputs. The solid state switching circuit guarantees a fast and click-free transition from one output channel to another.
• Multiple outputs can be selected simultaneously
• Supports line-out as well as headphones

Optical audio switching
Optical audio switching redirects the incoming external audio stream to any of the connected Mini-Toslink outputs.
• Suitable for demoing and comparing 5.1 soundbars
• Multiple outputs can be selected simultaneously

Technical details
Compliance certificates
CE, RoHS
Warranty period
1 year(s)
Sustainability compliance
Yes
Data transfer rate
8 Gbit/s
Supported protocols
ASCII
Dimensions (WxDxH)
91 x 86 x 26 mm
Operating temperature (T-T)
10 - 40 °C
Storage temperature (T-T)
-20 - 50 °C
Weight
120 g
Logistics data
Country of origin
Netherlands
Customs product code (TARIC)
8543709099
